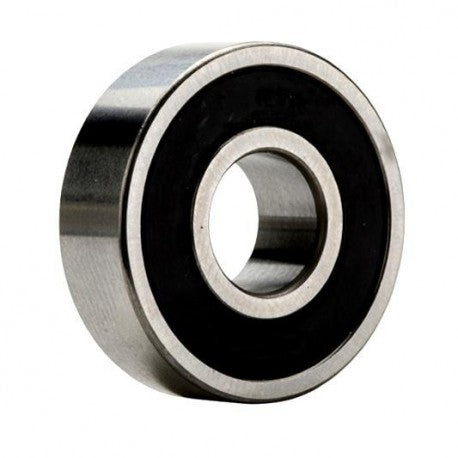

R20LLBC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 1540 lbf
outside diameter : 2.2500 in
Bore Diameter : 1.2500 in
precision rating : Class 0
overall width : 0.5000 in
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome
closure type : Double Sealed
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 0.5000 in
outer ring width : 0.5000 in
snap ring included : Without Snap Ring
internal clearance : C3
maximum rpm (grease) : 12000 rpm
operating temperature range : -40 to 250 ºF
fillet radius : 0.0310 in
