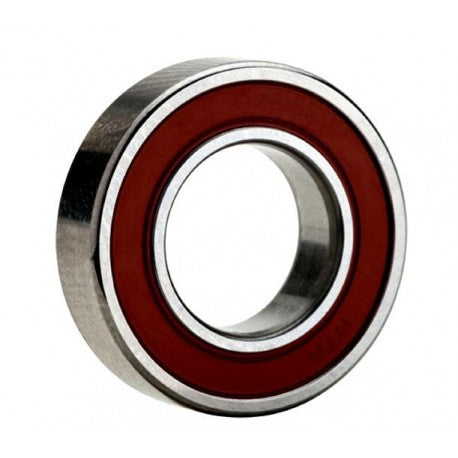

R4LL NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : Class 0
outside diameter : 0.6250 in
Bore Diameter : 0.2500 in
finish/coating : Uncoated
overall width : 0.1960 in
bearing material : High Carbon Chrome
bore type : Round
cage material : Steel
closure type : Double Sealed
inner ring width : 0.1960 in
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 0.1960 in
maximum rpm (grease) : 36000 rpm
snap ring included : Without Snap Ring
internal clearance : CN
fillet radius : 0.0120 in
operating temperature range : -40 to 250 ºF
maximum rpm : 43000 RPM
