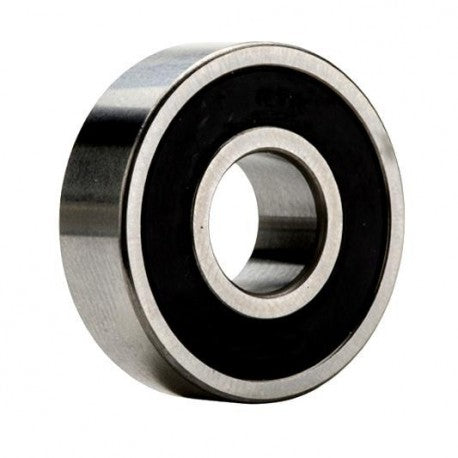

R4LLB NTN Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 0.1960 in
snap ring included : Without Snap Ring
outer ring width : 0.1960 in
internal clearance : CN
maximum rpm (grease) : 36000 rpm
Bore Diameter : 0.2500 in
static load capacity : 138 lbf
outside diameter : 0.6250 in
precision rating : Class 0
overall width : 0.1960 in
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome
closure type : Double Sealed
operating temperature range : -40 to 250 ºF
fillet radius : 0.0120 in
