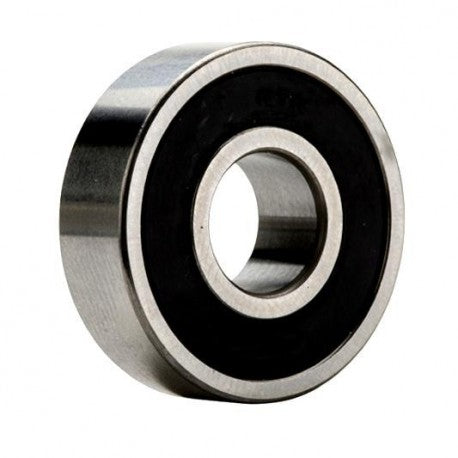

R8LLBC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 0.5000 in
finish/coating : Uncoated
outside diameter : 1.1250 in
bearing material : High Carbon Chrome
overall width : 0.3125 in
bore type : Round
cage material : Steel
inner ring width : 0.3125 in
closure type : Double Sealed
outer ring width : 0.3125 in
maximum rpm (grease) : 26000 rpm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
fillet radius : 0.0160 in
internal clearance : C3
maximum rpm : 30000 RPM
operating temperature range : -40 to 250 ºF
standards met : MIL-G-3545C
