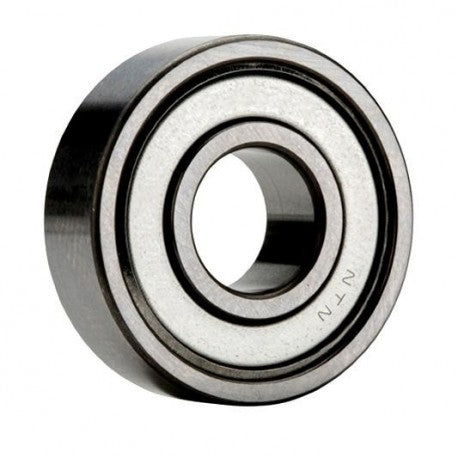

RA4ZZ NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 0.2500 in
static load capacity : 199 lbf
outside diameter : 0.7500 in
precision rating : Class 0
overall width : 0.2812 in
bore type : Round
finish/coating : Uncoated
bearing material : High Carbon Chrome
closure type : Double Shielded
cage material : Steel
inner ring width : 0.2812 in
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
outer ring width : 0.2812 in
internal clearance : CN
maximum rpm (grease) : 34000 rpm
operating temperature range : -40 to 250 ºF
fillet radius : 0.0160 in
