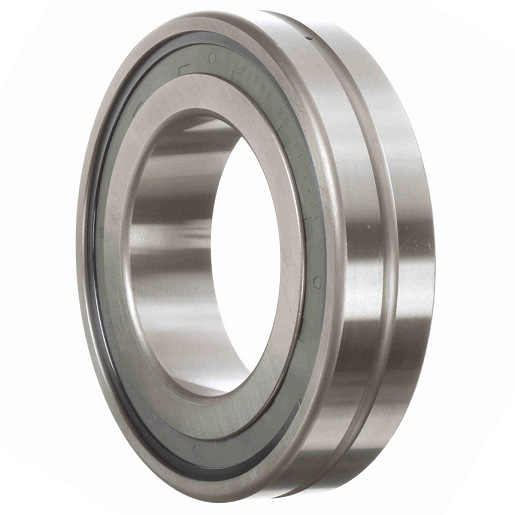

SB 22211 W33 SS
| Item no. | SB 22211 W33 SS |
| Manufacturer: FIJ
|
Equivalent: McGill |
| Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Cylindrical |
| Load direction | Combined |
| Structure | Single Row |
| Sealing | Double Seal |
| Inside Diameter | 55 mm |
| Outer Diameter | 100 mm |
| Width | 25 mm |
| Shaft Shoulder Diameter | 63.5 mm |
| Housing Shoulder Diameter | 88.9 mm |
| Width Of Lubricant Groove | 4.4 mm |
| Angular Misalignment | 2° |
| Material, Ring | Chrome Steel |
| Roller Material | Chrome Steel |
| Material, Cage | Steel |
| Basic dynamic load rating | 23155 lbf |
| Max Speed (X1000 rpm) | 4.65 |
| Lubricant | Lubricant Groove & Hole |
| Temperature Range | -30° to 150 °C |
| Radial Clearance | C0 |
| Mounting Method | Shaft Mount |
| Mass | 1.77 lb |
