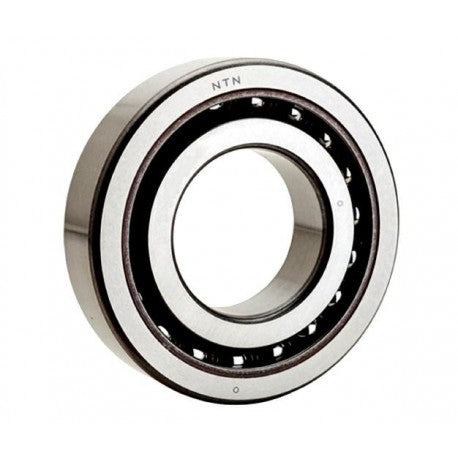

SF06A24 NTN Angular Contact Bearings bore Features & Specifications:
finish/coating : Uncoated
internal clearance : C0
precision rating : Standard
bore type : Round
Series : SF0
closure type : Open
Bore Diameter : 28 mm
radial dynamic load capacity : 20700 N
outside diameter : 72 mm
Radial static load capacity : 20700 N
overall width : 18 mm
operating temperature range : -40 to 120 ºC
contact angle : 30 °
cage material : Steel
row type & fill slot : Single-Row Non-Fill Slot
snap ring included : Without Snap Ring
