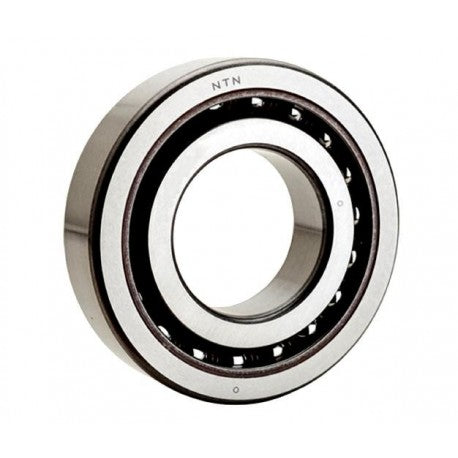

SF0815 NTN Angular Contact Bearings bore Features & Specifications:
radial dynamic load capacity : 8000 N
Radial static load capacity : 8000 N
Bore Diameter : 40 mm
outside diameter : 63.6 mm
overall width : 16 mm
operating temperature range : -40 to 120 ºC
row type & fill slot : Single-Row Non-Fill Slot
cage material : Steel
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : Standard
closure type : Open
Series : SF0
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
