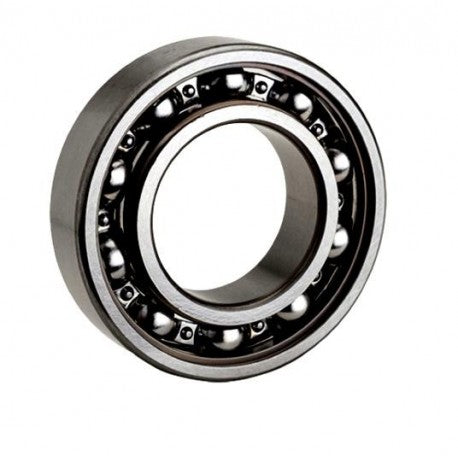

TMB304 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
outer ring width : 15 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 14000 rpm
snap ring included : Without Snap Ring
maximum rpm (oil) : 17000 rpm
internal clearance : CN
fillet radius : 1.1 mm
Bore Diameter : 20 mm
finish/coating : Uncoated
outside diameter : 52 mm
bearing material : High Carbon Chrome Steel
overall width : 15 mm
cage material : Steel
bore type : Round
inner ring width : 15 mm
closure type : Open
operating temperature range : -40 to 120 ºC
maximum rpm : 17000 RPM
