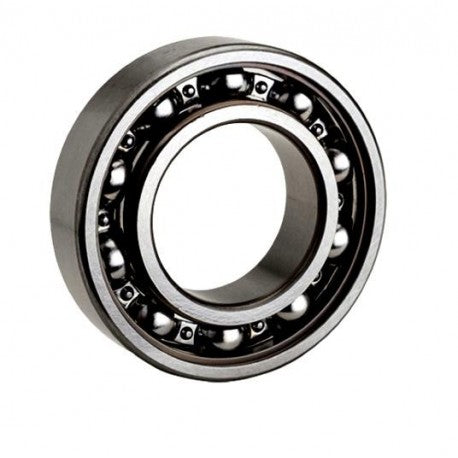

TMB305 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 25 mm
finish/coating : Uncoated
outside diameter : 62 mm
bearing material : High Carbon Chrome Steel
overall width : 17 mm
bore type : Round
cage material : Steel
inner ring width : 17 mm
closure type : Open
outer ring width : 17 mm
maximum rpm (grease) : 12000 rpm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
maximum rpm (oil) : 14000 rpm
internal clearance : CN
fillet radius : 1.1 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 1400 RPM
