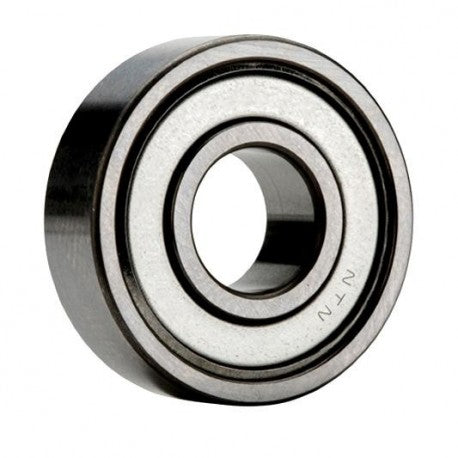

TMB318ZC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : ISO Class 0
outside diameter : 190 mm
Bore Diameter : 90 mm
finish/coating : Uncoated
overall width : 43 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Single Shield
inner ring width : 43 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 43 mm
maximum rpm (grease) : 3600 rpm
snap ring included : Without Snap Ring
internal clearance : C3
maximum rpm (oil) : 4200 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 3 mm
