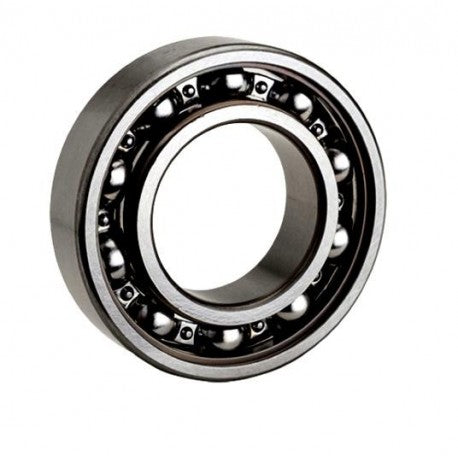

TS2-6208L1CC3P5 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 40 mm
finish/coating : Uncoated
outside diameter : 80 mm
bearing material : High Carbon Chrome Steel
overall width : 18 mm
bore type : Round
cage material : Brass
inner ring width : 18 mm
closure type : Open
outer ring width : 18 mm
maximum rpm (grease) : 8700 rpm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
maximum rpm (oil) : 10000 rpm
internal clearance : C3
fillet radius : 1.1 mm
operating temperature range : -40 to 160 ºC
maximum rpm : 10000 RPM
