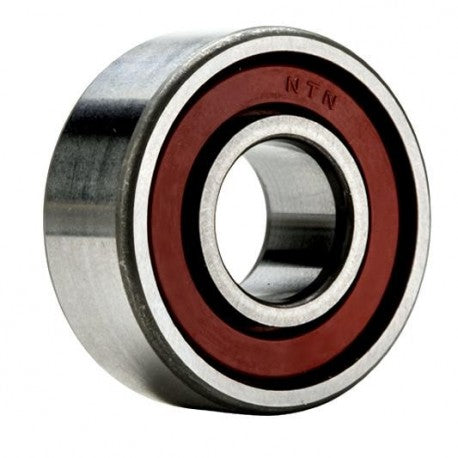

WC87503 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 4600 N
precision rating : ISO Class 0
Bore Diameter : 17 mm
outside diameter : 40 mm
overall width : 14.288 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : One Seal/One Shield
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 13.665 mm
snap ring included : Without Snap Ring
outer ring width : 14.288 mm
internal clearance : CN
maximum rpm (grease) : 12000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 0.6 mm
