IKO Cam Follower ECC Stud Caged Crowned OD Screwdriver Slot DBL Sealed 30mm OD 14mm W M12 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)7910 STATIC LOAD RATING (N)9790 DIMENSION B 15.2 mm max CORNER RADIUS ( r ) mm (inch)0.6 DIMENSION H...
IKO Cam Follower ECC Stud Caged Crowned OD Screwdriver Slot DBL Sealed 32mm OD 14mm W M12 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)7910 STATIC LOAD RATING (N)9790 DIMENSION B 15.2 mm max CORNER RADIUS ( r ) mm (inch)0.6 DIMENSION H...
IKO Roller Follower- Full Comp- Inch, CRY16VUUR, Crowned OD, Double Sealed, 1" OD, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)13100 OUTER RING CORNER RADIUS MIN. MM (INCH)-- RETAINERNone BORE DIAMETER MILLIMETERS (INCH)7.938 (5/16) SHAFT DIA PRESS FIT (MM)7.940 to 7.950 SIDE PLATE OD (A) MM...
IKO Separable Roller Follower- Metric, NAST25ZZUUR, Crowned OD, Double Sealed, 25 mm Bore, 52 mm OD, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)20800 OUTER RING CORNER RADIUS MIN. MM (INCH)-- RETAINERPressed Steel BORE DIAMETER MILLIMETERS (INCH)25 SHAFT DIA G6 FIT (MM)-0.007 to -0.020 SIDE PLATE...
IKO Cam Follower ECC Stud Caged Hex Hole DBL Sealed 30mm OD 14mm W M12 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Cylindrical OD DYNAMIC LOAD RATING (N)7910 STATIC LOAD RATING (N)9790 DIMENSION B 15.2 mm max CORNER RADIUS ( r ) mm (inch)0.6 DIMENSION H 6mm PERMISSIBLE...
IKO Cam Follower-INCH HD Full Comp Crowned OD Hex Hole DBL Sealed 3-1/2" OD 2"W 1-3/4 - 12 UN THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)111000 STATIC LOAD RATING (N)239000 DIMENSION B 52.8mm (2.08") CORNER RADIUS ( r ) mm (inch)-- DIMENSION H 19.050mm...
IKO Cam Follower-INCH HD Full Comp Crowned OD Hex Hole DBL Sealed 1" OD 5/8"W 5/8 - 18 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)13100 STATIC LOAD RATING (N)22700 DIMENSION B 17.9mm (0.70") CORNER RADIUS ( r ) mm (inch)-- DIMENSION H 6.350mm (1/4")...
IKO Separable Roller Follower- Metric, NAST15ZZUUR, Crowned OD, Double Sealed, 15 mm Bore, 35 mm OD, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)12400 OUTER RING CORNER RADIUS MIN. MM (INCH)-- RETAINERPressed Steel BORE DIAMETER MILLIMETERS (INCH)15 SHAFT DIA G6 FIT (MM)-0.006 to -0.017 SIDE PLATE...
IKO Cam Follower-INCH HD Full Comp Crowned OD Hex Hole DBL Sealed 1/2" OD 3/8"W 1/4 - 28 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)4710 STATIC LOAD RATING (N)5410 DIMENSION B 11.1mm (0.44") CORNER RADIUS ( r ) mm (inch)-- DIMENSION H 3.175mm (1/8")...
IKO Separable Roller Follower- Metric, NAST8ZZUU, Double Sealed, 8 mm Bore, 24 mm OD, Product Specifications BRAND IKO DYNAMIC LOAD RATING (N)5650 OUTER RING CORNER RADIUS MIN. MM (INCH)2.5 RETAINERPressed Steel BORE DIAMETER MILLIMETERS (INCH)8 SHAFT DIA G6 FIT (MM)-0.005 to -0.014 SIDE PLATE OD (A) MM (INCH)17.5 INNER RING...
IKO Roller Follower- Full Comp- Inch, CRY14VUUR, Crowned OD, Double Sealed, 7/8" OD, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)8710 OUTER RING CORNER RADIUS MIN. MM (INCH)-- RETAINERNone BORE DIAMETER MILLIMETERS (INCH)6.350 (1/4) SHAFT DIA PRESS FIT (MM)6.353 to 6.363 SIDE PLATE OD (A) MM...
IKO Separable Roller Follower- Metric, NAST25ZZUU, Double Sealed, 25 mm Bore, 52 mm OD, Product Specifications BRAND IKO DYNAMIC LOAD RATING (N)20800 OUTER RING CORNER RADIUS MIN. MM (INCH)3 RETAINERPressed Steel BORE DIAMETER MILLIMETERS (INCH)25 SHAFT DIA G6 FIT (MM)-0.007 to -0.020 SIDE PLATE OD (A) MM (INCH)43 INNER RING...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 16mm OD 11mm W M6 x 1 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)3660 STATIC LOAD RATING (N)3650 DIMENSION B 12.2 mm max CORNER RADIUS ( r ) mm (inch)0.3 DIMENSION H...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 19mm OD 11mm W M8 x 1.25 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)4250 STATIC LOAD RATING (N)4740 DIMENSION B 12.2 mm max CORNER RADIUS ( r ) mm (inch)0.3 DIMENSION H...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 40mm OD 20mm W M18 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)14800 STATIC LOAD RATING (N)25200 DIMENSION B 21.6 mm max CORNER RADIUS ( r ) mm (inch)1 DIMENSION H...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 26mm OD 12mm W M10 x 1.25 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)5430 STATIC LOAD RATING (N)6890 DIMENSION B 13.2 mm max CORNER RADIUS ( r ) mm (inch)0.3 DIMENSION H...
IKO Roller Follower- Full Comp- Inch, CRY14VUU, Double Sealed, 7/8" OD, Product Specifications BRAND IKO BEARING STYLE Cylindrical OD DYNAMIC LOAD RATING (N)8710 OUTER RING CORNER RADIUS MIN. MM (INCH)0.794 (1/32) RETAINERNone BORE DIAMETER MILLIMETERS (INCH)6.350 (1/4) SHAFT DIA PRESS FIT (MM)6.353 to 6.363 SIDE PLATE OD (A) MM (INCH)14.4...
IKO Cam Follower ECC Stud Caged Hex Hole DBL Sealed 35mm OD 18mm W M16 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Cylindrical OD DYNAMIC LOAD RATING (N)12000 STATIC LOAD RATING (N)18300 DIMENSION B 19.6 mm max CORNER RADIUS ( r ) mm (inch)0.6 DIMENSION H 6mm PERMISSIBLE...
IKO Separable Roller Follower- Metric, NAST6ZZUU, Double Sealed, 6 mm Bore, 19 mm OD, Product Specifications BRAND IKO DYNAMIC LOAD RATING (N)4160 OUTER RING CORNER RADIUS MIN. MM (INCH)2.5 RETAINERPressed Steel BORE DIAMETER MILLIMETERS (INCH)6 SHAFT DIA G6 FIT (MM)-0.005 to -0.014 SIDE PLATE OD (A) MM (INCH)14 INNER RING...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 35mm OD 18mm W M16 x 1.5 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)12000 STATIC LOAD RATING (N)18300 DIMENSION B 19.6 mm max CORNER RADIUS ( r ) mm (inch)0.6 DIMENSION H...
IKO Cam Follower ECC Stud Caged Crowned OD Hex Hole DBL Sealed 22mm OD 12mm W M10 x 1.25 THR, Product Specifications BRAND IKO BEARING STYLE Crowned OD DYNAMIC LOAD RATING (N)5430 STATIC LOAD RATING (N)6890 DIMENSION B 13.2 mm max CORNER RADIUS ( r ) mm (inch)0.3 DIMENSION H...
IKO Roller Follower- Full Comp- Inch, CRY20VUU, Double Sealed, 1-1/4" OD, Product Specifications BRAND IKO BEARING STYLE Cylindrical OD DYNAMIC LOAD RATING (N)23600 OUTER RING CORNER RADIUS MIN. MM (INCH)1.588 (1/16) RETAINERNone BORE DIAMETER MILLIMETERS (INCH)9.525 (3/8) SHAFT DIA PRESS FIT (MM)9.528 to 9.538 SIDE PLATE OD (A) MM (INCH)25.0...

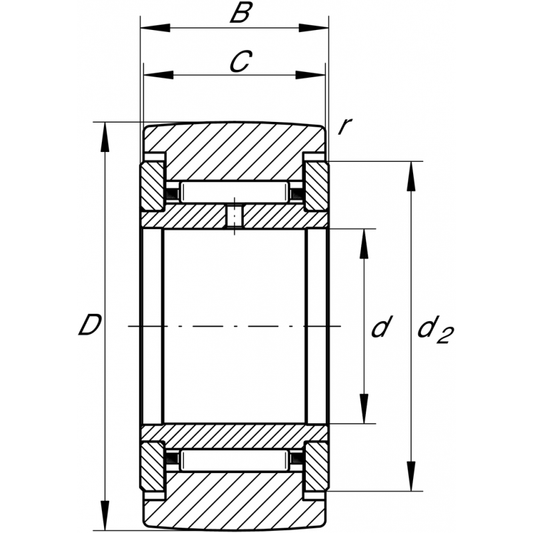

NATR12 Track rollers bearings Dimensions Width, outer ring C 14 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Outside diameter of thrust washer d2 25 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 9,200 N Speed...

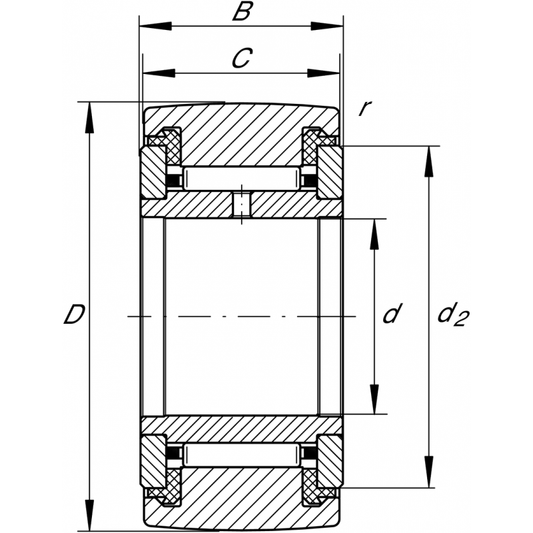

NATR12-PP Track rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 9,200 N Speed on permanent grease lubrication nD G 4,500 1/min Basic static load rating, radial C0r 9,200 N Width, inner ring Bi 15 mm Bore diameter d 12 mm Permissible static load,...
