Yoke Type Track Roller PWTR17 2RS 17x40x21 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR17-2RS-RR-XL Support Roller bearings Dimensions Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 16,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...
PWTR1747-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic static load rating, radial C0r 18,400 N Width, inner ring Bi 21 mm Bore diameter d 17 mm Permissible static load,...
Yoke Type Track Roller PWTR1747 2RS 17x47x21 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR1747-2RS-A Support Roller bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...

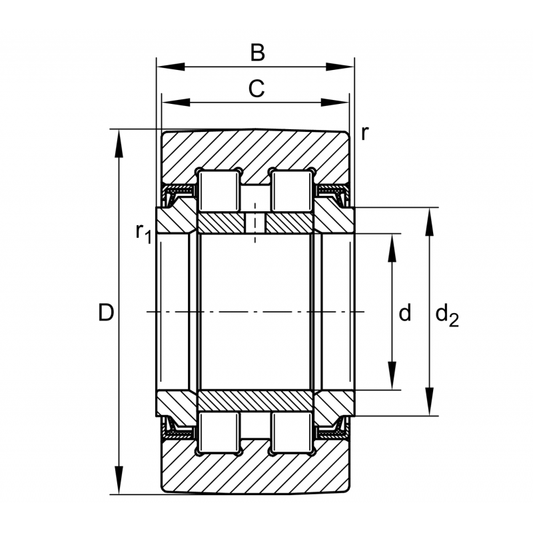

PWTR1747-2RS-A-RR Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...
PWTR1747-2RS-XL Support Roller bearings Dimensions Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...
PWTR20-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 20,600 N Speed on permanent grease lubrication nD G 3,800 1/min Basic static load rating, radial C0r 31,000 N Width, inner ring Bi 25 mm Bore diameter d 20 mm Permissible static load,...
Yoke Type Track Roller PWTR20 2RS 20x47x25 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR20-2RS-RR-XL Yoke Rollers bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 27 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 20,600 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...
PWTR20-2RS-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 27 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 20,600 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...
