Yoke Type Track Roller PWTR30 2RS 30x62x29 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR3072-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 53,000 N Speed on permanent grease lubrication nD G 2,200 1/min Basic static load rating, radial C0r 56,000 N Width, inner ring Bi 29 mm Bore diameter d 30 mm Permissible static load,...
Yoke Type Track Roller PWTR3072 2RS 30x72x29 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR35-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 38,500 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 53,000 N Width, inner ring Bi 29 mm Bore diameter d 35 mm Permissible static load,...
Yoke Type Track Roller PWTR35 2RS 35x72x29 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR35-2RS-RR-XL Yoke Rollers bearings Dimensions Width, outer ring C 28 mm Stop diameter of thrust washer d2 44 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 38,500 N Speed on permanent grease lubrication nD G 1,800 1/min Basic...
PWTR3580-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 59,000 N Speed on permanent grease lubrication nD G 1,800 1/min Basic static load rating, radial C0r 62,000 N Width, inner ring Bi 29 mm Bore diameter d 35 mm Permissible static load,...
Yoke Type Track Roller PWTR3580 2RS 35x80x29 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
PWTR40-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 39,000 N Speed on permanent grease lubrication nD G 1,500 1/min Basic static load rating, radial C0r 60,000 N Width, inner ring Bi 32 mm Bore diameter d 40 mm Permissible static load,...
Yoke Type Track Roller PWTR40 2RS 40x80x32 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

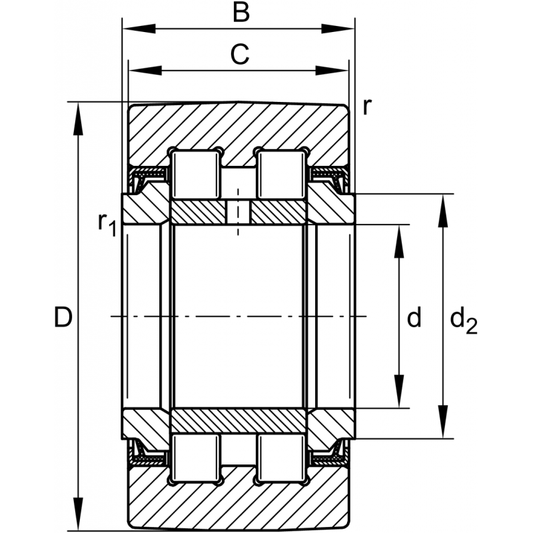

PWTR40-2RS-RR-XL#E Support Roller bearings Dimensions Width, outer ring C 30 mm Minimum chamfer dimension rmin 0.60 mm Stop diameter of thrust washer d2 50.50 mm Main Dimensions & Performance Data Bore diameter d 40 mm Width, inner ring Bi 32 mm Basic static load rating, radial C0r 60,000 N Speed...
Yoke Type Track Roller PWTR4090 2RS 40x90x32 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...
Regular price
$17.91
Regular priceSale price
$17.91
Unit price/ per
