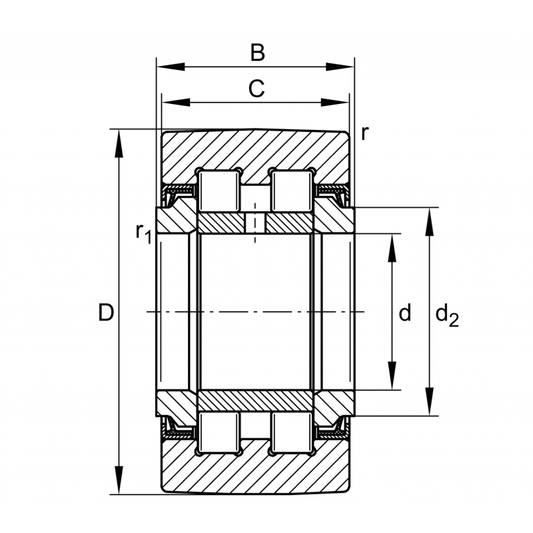

PWTR4090-2RS-A Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 30 mm Stop diameter of thrust washer d2 50.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 66,000 N Speed on permanent grease lubrication nD G 1,500 1/min Basic...

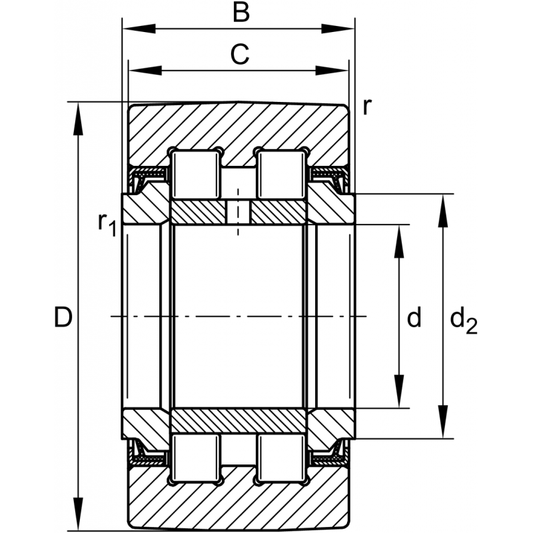

PWTR4090-2RS-XL#E Support Roller bearings Dimensions Width, outer ring C 30 mm Minimum chamfer dimension rmin 0.60 mm Stop diameter of thrust washer d2 50.50 mm Main Dimensions & Performance Data Bore diameter d 40 mm Width, inner ring Bi 32 mm Basic static load rating, radial C0r 74,000 N Speed...

PWTR45-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 40,500 N Speed on permanent grease lubrication nD G 1,300 1/min Basic static load rating, radial C0r 62,000 N Width, inner ring Bi 32 mm Bore diameter d 45 mm Permissible static load,...

Yoke Type Track Roller PWTR45 2RS 45x85x32 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

PWTR45100-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 83,000 N Speed on permanent grease lubrication nD G 1,300 1/min Basic static load rating, radial C0r 83,000 N Width, inner ring Bi 32 mm Bore diameter d 45 mm Permissible static load,...

Yoke Type Track Roller PWTR45100 2RS 45x100x32 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

PWTR50 2RSA Support Roller bearings

PWTR50-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 41,500 N Speed on permanent grease lubrication nD G 1,100 1/min Basic static load rating, radial C0r 64,000 N Width, inner ring Bi 32 mm Bore diameter d 50 mm Permissible static load,...

Yoke Type Track Roller PWTR50 2RS 50x90x32 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

PWTR50-2RS-RR-XL Support Roller bearings Dimensions Width, outer ring C 30 mm Stop diameter of thrust washer d2 59.80 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 41,500 N Speed on permanent grease lubrication nD G 1,100 1/min Basic...

PWTR50-2RS-XL Support Roller bearings Dimensions Width, outer ring C 30 mm Stop diameter of thrust washer d2 59.80 mm Minimum chamfer dimension rmin 0.60 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 41,500 N Speed on permanent grease lubrication nD G 1,100 1/min Basic...

PWTR50110-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 92,000 N Speed on permanent grease lubrication nD G 1,100 1/min Basic static load rating, radial C0r 92,000 N Width, inner ring Bi 32 mm Bore diameter d 50 mm Permissible static load,...
