PWTR2052-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 31,000 N Speed on permanent grease lubrication nD G 3,800 1/min Basic static load rating, radial C0r 35,500 N Width, inner ring Bi 25 mm Bore diameter d 20 mm Permissible static load,...

Yoke Type Track Roller PWTR2052 2RS 20x52x25 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

PWTR2052-2RS-RR-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 27 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 31,000 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

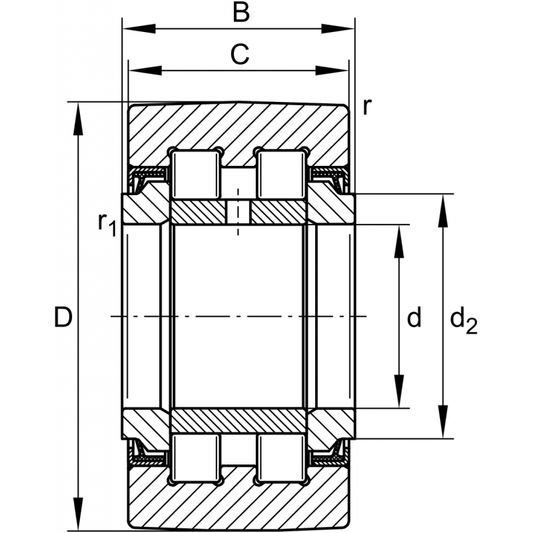

PWTR2052-2RS-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 27 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 31,000 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

PWTR25-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 21,800 N Speed on permanent grease lubrication nD G 3,800 1/min Basic static load rating, radial C0r 33,500 N Width, inner ring Bi 25 mm Bore diameter d 25 mm Permissible static load,...

PWTR25-2RS-RR-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 21,800 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

PWTR25-2RS-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 21,800 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

PWTR2562-2RS Yoke Rollers bearings Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 3,800 1/min Basic static load rating, radial C0r 42,500 N Width, inner ring Bi 25 mm Bore diameter d 25 mm Permissible static load,...

Yoke Type Track Roller PWTR2562 2RS 25x62x25 mm it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support since the...

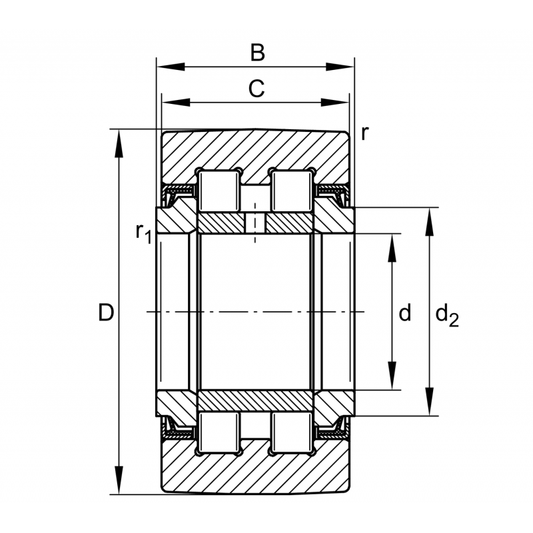

PWTR2562-2RS-A Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

PWTR2562-2RS-RR-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...

PWTR2562-2RS-XL Support Roller bearings Dimensions Width, outer ring C 24 mm Stop diameter of thrust washer d2 31 mm Minimum chamfer dimension rmin 0.50 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 42,500 N Speed on permanent grease lubrication nD G 3,800 1/min Basic...
