LR5305-2HRS-TVH-XL Track rollers bearings Dimensions Radius of outer ring outside profile R 500 mm Diameter of thrust washer d2 37.60 mm Minimum chamfer dimension rmin 1.10 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,500 N Fatigue load limit, radial Cur 1,140 N Basic...
LR5005-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 29.80 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 8,400 N Fatigue load limit, radial Cur 450 N Basic...
KR16-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 14,000 1/min Basic static load rating, radial C0r 3,450 N Width B 28 mm Outside diameter D 16 mm Fatigue load limit, radial Cur 465 N Basic dynamic load rating, radial Cr...
LR5207-X-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 47 mm Minimum chamfer dimension rmin 1.10 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,200 N Fatigue load limit, radial Cur 1,450 N Basic...
KR26-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 13.20 mm Width of flats W 5 mm Thread M10X1 Minimum chamfer dimension rmin 0.30 mm Width, outer ring C 12 mm Radius of outer ring outside profile R 500 mm Thread length IG 12 mm Stop...
KR40-PP Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 21.60 mm Thread length IG 19 mm Diameter lubrication hole ds 3 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 20 mm Bolt/stud length effectively B2 36.50 mm Width of flats W 8 mm...
LR5202-X-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 21 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 7,700 N Fatigue load limit, radial Cur 390 N Basic...
LR5206-X-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 40.30 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 22,000 N Fatigue load limit, radial Cur 1,140 N Basic...

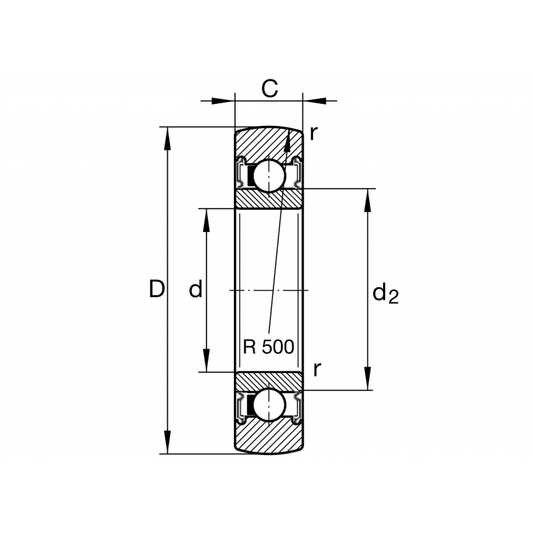

LR607-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 9 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 20,000 1/min Basic static load rating, radial C0r 890 N Height...

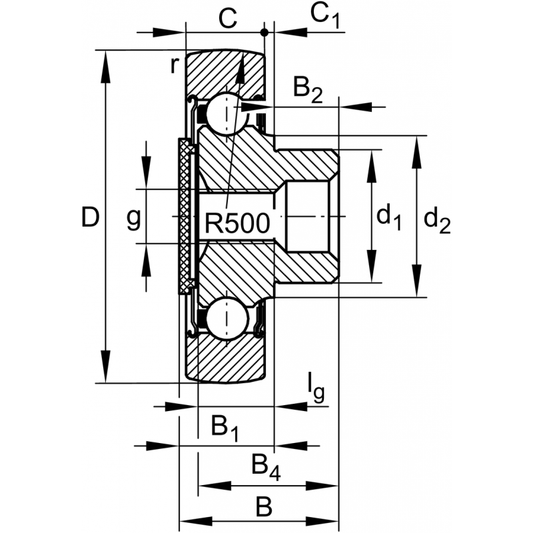

ZL204-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 17 mm Thread length (inner) lg 18 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 2 mm Length total B4 28.50 mm Radius of outer ring outside profile R 500 mm Thread inside...
KR30-X Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...
