KRV52-X-PP-A Stud type track rollers bearings

KR30-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...

LFR50/5-4-2RS-RB-H Track rollers bearings stainless steel

PWTR1747-2RS-A-RR Track rollers bearings Dimensions Minimum chamfer dimension rmin 0.50 mm Width, outer ring C 20 mm Stop diameter of thrust washer d2 22 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 18,400 N Speed on permanent grease lubrication nD G 5,000 1/min Basic...

LFR5201-10-2Z Track rollers bearings

LR205-RRU Track rollers bearings

KRE19 Stud type track rollers bearings Dimensions Bolt/stud length effectively B2 20 mm Eccentricity e 0.50 mm Diameter of eccentric de 11 mm Thread M8 Minimum chamfer dimension rmin 0.15 mm Width, outer ring C 11 mm Witdh of thrust washer B1 12.20 mm Width, eccentric Be 9 mm Thread...

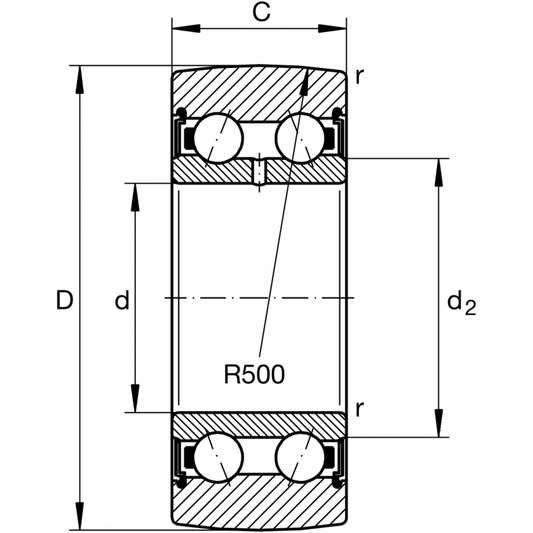

LR5005-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 29.80 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 8,400 N Fatigue load limit, radial Cur 450 N Basic...

LR50/8-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 10.50 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 2,460 N Fatigue load limit, radial Cur 122 N Basic...

NUKR52 Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Thread length IG 21 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Bolt/stud length effectively B2 40.50 mm Width of flats W 10 mm Thread...

KRE47-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Nominal dimension for hexagonal socket W 10 mm Thread M20X1,5 Stop diameter of thrust washer d2 36.50 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole...

KR26-PP Stud type track rollers bearings Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 8,000 1/min Basic static load rating, radial C0r 6,500 N Width B 36 mm Outside diameter D 26 mm Fatigue load limit, radial Cur 860 N Basic dynamic load rating, radial Cr...

KR19-SK-PP-A Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 12.20 mm Thread length IG 10 mm Stop diameter of thrust washer d2 15 mm Protrusion outer ring to thrust washer C1 0.60 mm Bolt/stud length effectively B2 20 mm Width of flats W 4 mm Thread...

KR26-X Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 13.20 mm Width of flats W 5 mm Thread M10X1 Minimum chamfer dimension rmin 0.30 mm Width, outer ring C 12 mm Radius of outer ring outside profile R 500 mm Thread length IG 12 mm Stop...

KR40-X-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 21.60 mm Width of flats W 8 mm Thread M18X1,5 Stop diameter of thrust washer d2 31.50 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole Ca 8 mm Radius of outer...

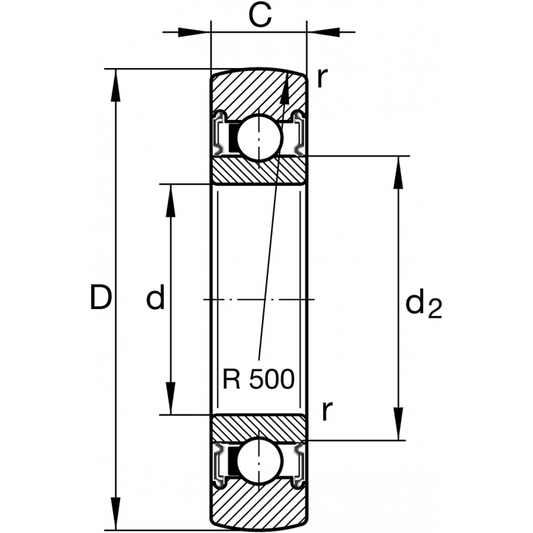

LR607-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 9 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 20,000 1/min Basic static load rating, radial C0r 890 N Height...

LFR5301-NPP Track rollers bearings

KR19 Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 12.20 mm Thread length IG 10 mm Stop diameter of thrust washer d2 15 mm Protrusion outer ring to thrust washer C1 0.60 mm Bolt/stud length effectively B2 20 mm Radius of outer ring outside profile R...

KR30-X-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...

LR5001-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 15.50 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 3,200 N Fatigue load limit, radial Cur 166 N Basic...

KR5205-NPPU Track rollers bearings

ZL204-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 17 mm Thread length (inner) lg 18 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 2 mm Length total B4 28.50 mm Radius of outer ring outside profile R 500 mm Thread inside...

KRE19-PP Stud type track rollers bearings Dimensions Witdh of thrust washer B1 12.20 mm Width, eccentric Be 9 mm Thread length IG 10 mm Stop diameter of thrust washer d2 15 mm Protrusion outer ring to thrust washer C1 0.60 mm Bolt/stud length effectively B2 20 mm Eccentricity e 0.50...

ZL5201-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 19.50 mm Thread length (inner) lg 14 mm Minimum chamfer dimension rmin 0.60 mm Protrusion outer ring to thrust washer C1 2.60 mm Length total B4 31 mm Radius of outer ring outside profile R 500 mm Thread inside...
