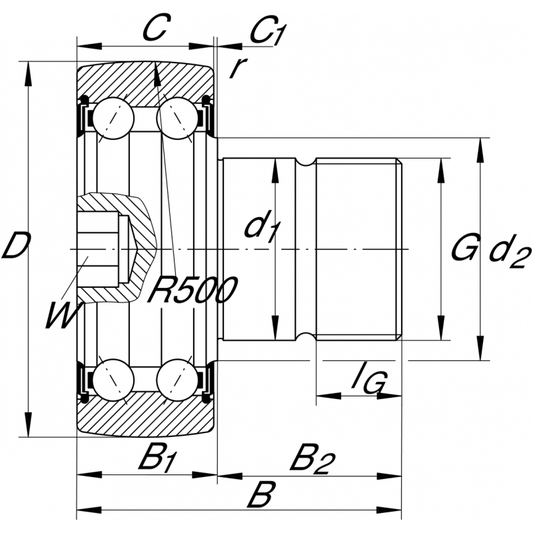

KR5201-2RS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 17 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 17.10 mm Width, outer ring C 15.90 mm Radius of outer ring outside profile R 500 mm Thread length IG 17 mm Minimum...
KR32-X-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...
KR26-X Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 13.20 mm Width of flats W 5 mm Thread M10X1 Minimum chamfer dimension rmin 0.30 mm Width, outer ring C 12 mm Radius of outer ring outside profile R 500 mm Thread length IG 12 mm Stop...

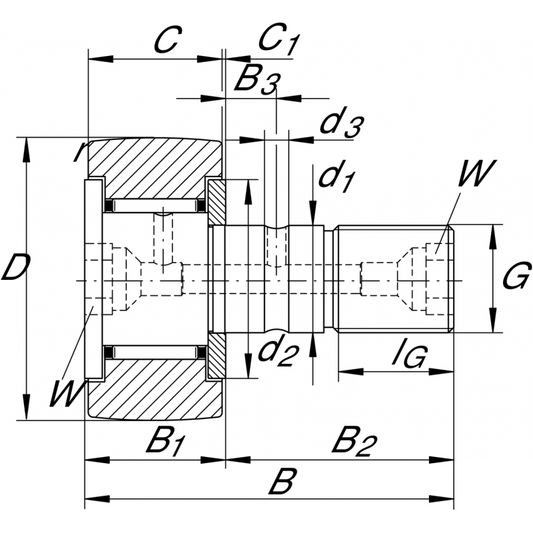

KR32-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...
ZL5201-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 19.50 mm Thread length (inner) lg 14 mm Minimum chamfer dimension rmin 0.60 mm Protrusion outer ring to thrust washer C1 2.60 mm Length total B4 31 mm Radius of outer ring outside profile R 500 mm Thread inside...

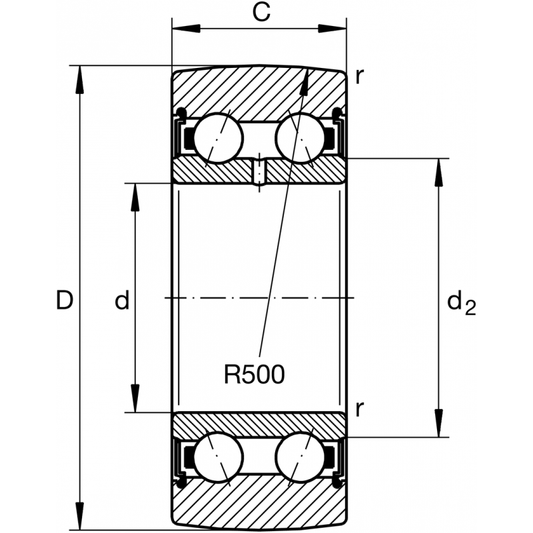

LR5001-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 15.50 mm Minimum chamfer dimension rmin 0.30 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 3,200 N Fatigue load limit, radial Cur 166 N Basic...

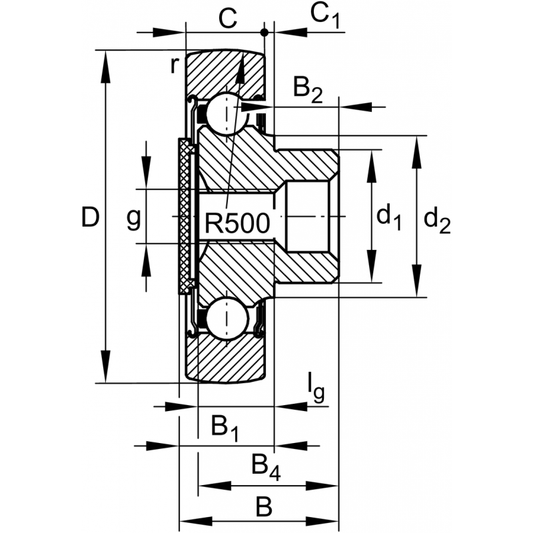

ZL205-DRS Track rollers bearings Dimensions Maximum witdh of thrust washer B1 18 mm Thread length (inner) lg 19 mm Minimum chamfer dimension rmin 1 mm Protrusion outer ring to thrust washer C1 2 mm Length total B4 31 mm Radius of outer ring outside profile R 500 mm Thread inside...
KR30-X-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 15.20 mm Width of flats W 6 mm Thread M12X1,5 Stop diameter of thrust washer d2 23 mm Protrusion outer ring to thrust washer C1 0.60 mm Distance to lubrication hole Ca 6 mm Radius of outer...
LR5007-2RS Track rollers bearings Dimensions Diameter of thrust washer d2 41.70 mm Minimum chamfer dimension rmin 1 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 13,700 N Fatigue load limit, radial Cur 740 N Basic...

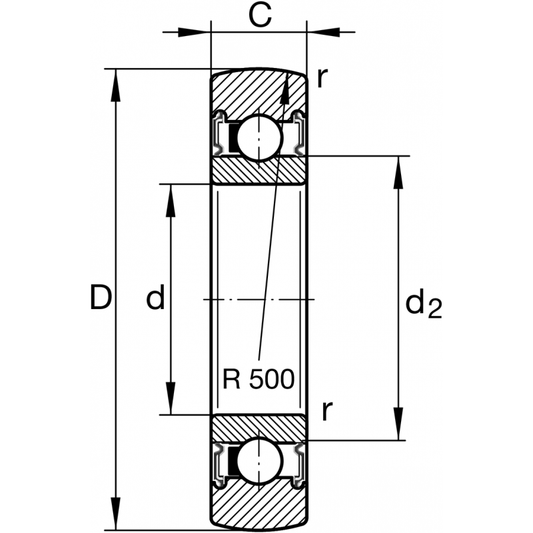

LR203-2RSR Track rollers bearings Dimensions Diameter of thrust washer d2 24 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Speed on permanent grease lubrication nD G 9,000 1/min Basic static load rating, radial C0r 4,550 N Height...
PWKR47-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Thread length IG 21 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Bolt/stud length effectively B2 40.50 mm Width of flats W 10 mm Thread...
KR35-X-NMT Stud type track rollers bearings Dimensions Maximum witdh of thrust washer B1 19.60 mm Width of flats W 8 mm Thread M16X1,5 Stop diameter of thrust washer d2 27.60 mm Protrusion outer ring to thrust washer C1 0.80 mm Distance to lubrication hole Ca 8 mm Radius of outer...

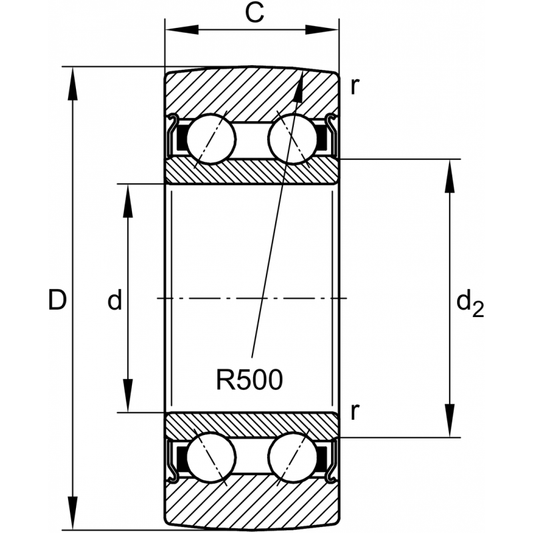

LR5200-2Z-TVH-XL Track rollers bearings Dimensions Diameter of thrust washer d2 17 mm Minimum chamfer dimension rmin 0.60 mm Radius of outer ring outside profile R 500 mm Main Dimensions & Performance Data Permissible dynamic load outer ring, radial Fr per 4,900 N Fatigue load limit, radial Cur 250 N Basic...
PWKR72-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 30.60 mm Thread length IG 25 mm Diameter lubrication hole ds 4 mm Minimum chamfer dimension rmin 1.10 mm Width, outer ring C 28 mm Bolt/stud length effectively B2 49.50 mm Width of flats W 14 mm Thread...

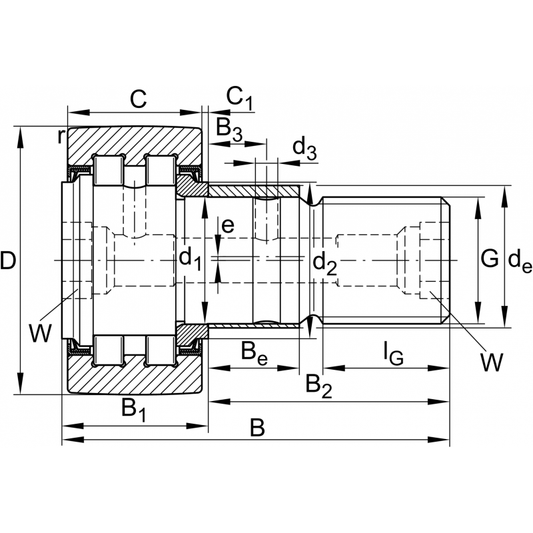

PWKRE35-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 22.60 mm Width, eccentric Be 12 mm Width of flats W 8 mm Thread M16X1,5 Minimum chamfer dimension rmin 0.60 mm Width, outer ring C 18 mm Eccentricity e 1 mm Diameter of eccentric de 20 mm Thread...
PWKRE52-2RS Stud type track rollers bearings Dimensions Witdh of thrust washer B1 25.60 mm Width, eccentric Be 18 mm Width of flats W 10 mm Thread M20X1,5 Minimum chamfer dimension rmin 1 mm Width, outer ring C 24 mm Eccentricity e 1 mm Diameter of eccentric de 24 mm Thread...
